If you are charging the car battery, it is necessary to remember how to read a battery charger amp meter or ammeter so that you will remember correctly how many amps are running into a battery. But before identifying methods to examine an amp meter while you connect the battery, lets, 1st get to understand what is an amp meter, & what it does.

You can use the amp meter on the charger to know how many amps are going into the battery.

After studying this article, you will identify how to read a battery charger amp meter correctly. We will break it down into manageable steps, so anyone can read their amp meter after studying this article.

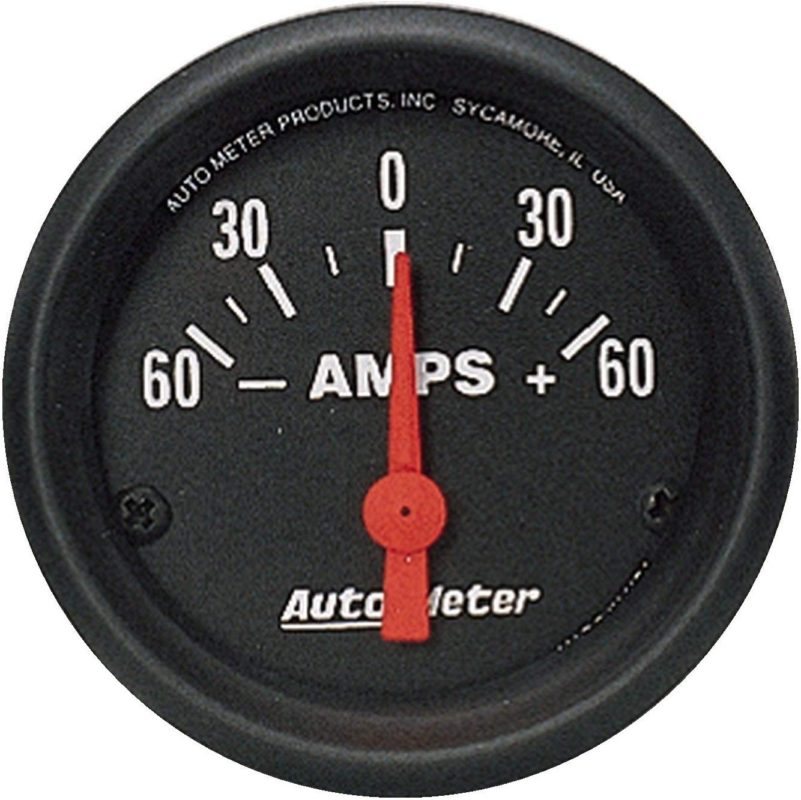

What is an Amp Meter?

An amp meter is a tool that estimates the electric current moving into electrical equipment or, in this case, a car battery. The phrase amp meter is obtained from ampere, the standard unit of measurement for electric current.

The amp meter in the battery charger presents how much electric current is moving outputted by a battery charger to the battery.

You should understand that an amp meter just measures electric current & not voltage. These 2 are not the equivalent or are they interchangeable. Voltage is a calculable expression of the possible difference in charge defined by 2 spots in an electric circuit. It can be viewed as the power enclosed within an electric field or circuit at a particular point. While current is the number of electric charges that run at any provided spot on an electric circuit.

An individual way of assuming the difference between voltage and current is to compare electricity reaching through a cable with water moving through the waterline. In this example, voltage is the liquid pressure while current is the rate of the flow of water. When you modify one, the opposite changes further, but they are not the same.

How to Connect the Battery Charger?

Before you can read the amp meter of the battery charger, you have to associate the charger to the battery first. Keep in mind, when working with batteries it is best to wear wellbeing gloves and goggles. Here are the means for associating the charger.

Stage 1 – Detach the battery from the vehicle

While detaching the vehicle battery, ensure that your motor isn’t running, and the key isn’t in the start. Presently, find the battery under the front hood of the vehicle. With a socket wrench, twist the nut of the battery’s terminal (negative terminal first) counterclockwise to slacken it. At the point when the nuts are sufficiently free, pull off the negative connector from the battery. Rehash the procedure with the positive terminal.

Stage 2 – Interfacing the charger to the battery

Before interfacing the charger to the battery, ensure first that the charger is off, the electrolyte level is great. If it isn’t, finish it off with refined water. Likewise, ensure that the battery posts are perfect.

At the point when you’re ready, associate the positive clip of the charger’s link to the positive post or terminal of the battery. The positive clip of the link is generally red while the positive post of the battery has a “+” sign. Rehash the procedure for the negative post. The negative clip of the link of the charger is dark.

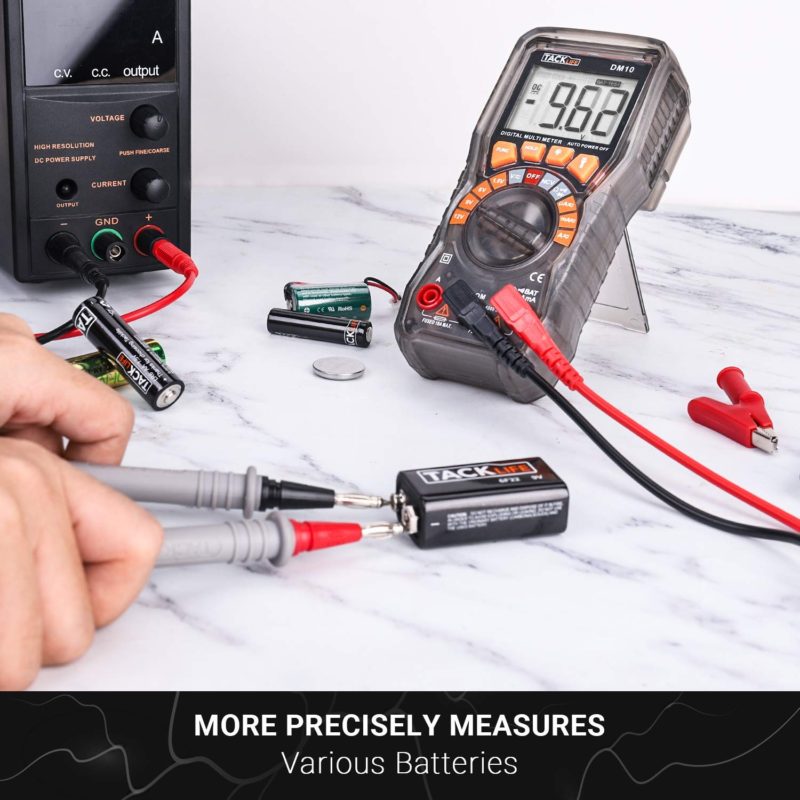

Solution – How to Read a Battery Charger Amp Meter?

When you have associated the charger to the battery, you’re ready to charge the battery and read the amp meter. Plug the battery charger and switch it on. At the point when the charger is switched on the needle of the meter moves to the ideal amps, state ten amps. As the battery keeps on charging, the needle descends. At the point when the needle has dropped to practically 50% of the ideal amp, it implies that the battery is completely energized.

The amp meter has two red territories. They show the charge rate you have picked toward the beginning of charging. On the extreme right, there is a red region that is for the higher charge rate amperage. The red region on the left half of the amp meter determines rates for the 2-amp position. At the point when you start charging, the needle moves to the correct red region, however, when the battery becomes charged the needle drops setting off to one side in the region of the enormous red zone.

In the event that there are two needles in the amp meter, figure out how to recognize which will be which. The needle that focuses on the ideal amp when switched on is the needle that will disclose to you how much amps are being put out by the charger.

The subsequent needle will reveal to you the measure of charge the battery has. At the point when the needles are one over the other, the amp meter is disclosing to you that the battery is completely energized.

When there is a short circuit in the battery being charged, the amp meter will demonstrate that the charger is discharging the most extreme current and that the battery is to a great extent released. At the point when 5 to 10 minutes has passed, and the needle is as yet not moving to move toward the lower amperage, cease charging. On the off chance that you have a voltmeter, have a go at reading the battery voltage, and when the response is beneath 12 volts you may have a flawed battery that necessities overhauling or supplanting.

Be that as it may, if the voltage reading is in excess of 12 volts, you can keep charging. However, on the off chance that 15-20 minutes have passed and the amp meter needle stays stationary and has not dropped to bring down amperage, give the voltage test another attempt. In the event that the reading is equivalent to previously, at that point you have an issue. The battery is damaged and would need to be adjusted or supplanted.

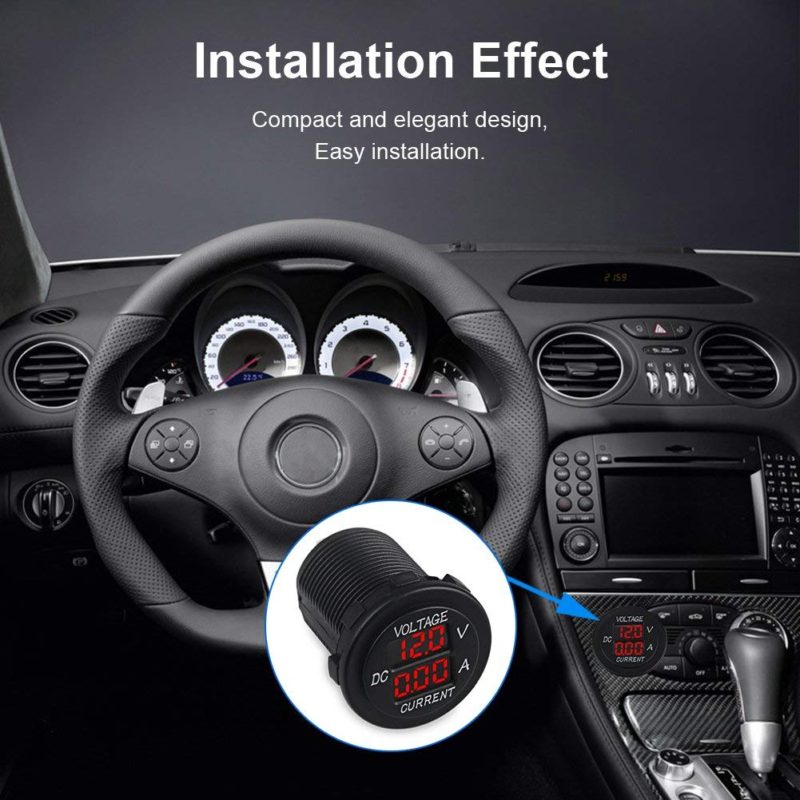

Digital Amp Meters

A portion of the further developed battery chargers has digital ammeters. Digital ammeters don’t have moving parts. A circuit like a dual-slope integrator is utilized to change a deliberate analog reading to its digital proportional. The precision of a lot of digital ammeters is superior to 0.1%.

Digital battery charger amp meters are anything but difficult to read since the amp reading is shown in the Drove showcase. In any case, a large number of these digital ammeters likewise fill in as a voltmeter or as a multimeter to such an extent that it gets befuddling. To be certain that it is the amp output that you are reading set the gadget accurately. Search the read-choice until you discover the readout that says amp output.

Final Words

How you read a battery charger amp meter needn’t bother with a genius, as long as you comprehend what you need to know and how the amp meter functions. The analog amp meter has a needle that will demonstrate the amp output while a digital amp meter has the numbers shown.
